| 브랜드 이름: | BOE |
| 모델 번호: | GV101WXM-N81 |
| MOQ: | 50pcs |
| 가격: | To Be Negotiated |
| 포장에 대한 세부 사항: | Carton Box Or Wood Case |
| 지불 조건: | T/T |
| Attribute | Value |
|---|---|
| Operating Temperature | 0~50℃ |
| Resolution | 1280x800 Pixels |
| Display Color | 16.7M |
| Luminance | 250cd/㎡ |
| Surface Treatment | HC Glare |
| Active Area | 216.96x135.6mm |
| Panel Size | 10.1" |
| Storage Temperature | -20~60℃ |

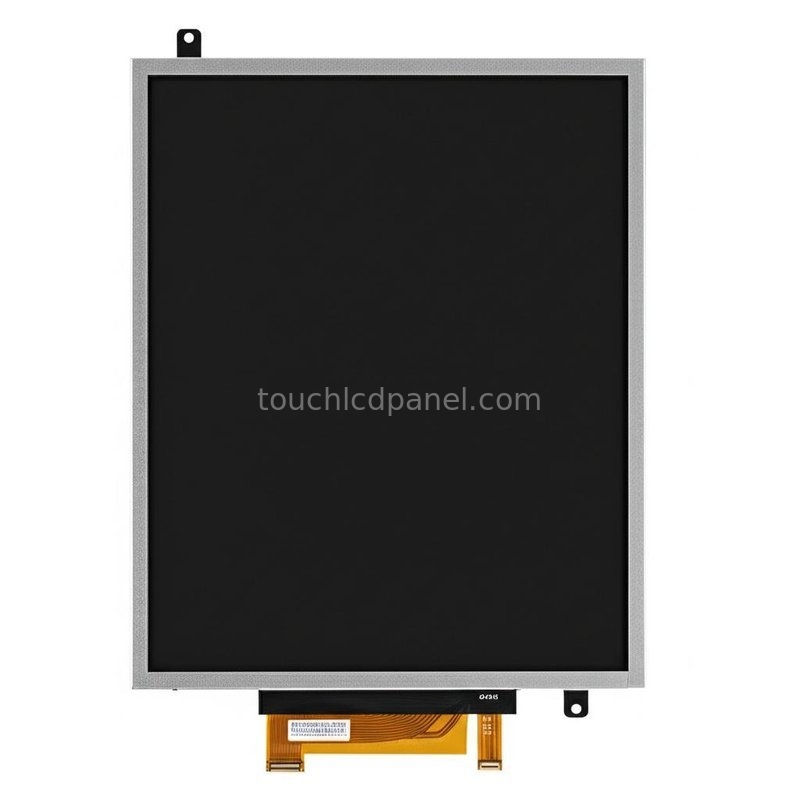

The GV101WXM-N81 is a high-performance 10.1" LCD panel from BOE featuring 1280x800 resolution, eDP interface, and 250 nits brightness. This original A-grade panel offers wide viewing angles and HC glare surface treatment, with optional multi-touch functionality.
The active display area measures 216.96x135.6mm, delivering vibrant, detailed imagery with effective pixel utilization. With compact outline dimensions of 228.3x149.05mm, this panel provides an efficient display solution for various applications.
Featuring an eDP interface, the panel ensures seamless connectivity and smooth data transmission for high-quality image display without lag or distortion. The 250cd/㎡ luminance delivers bright, vivid colors with exceptional clarity for photos, videos, and graphics.
| Outline | 228.3x149.05mm |
| Color Gamut | 50% |
| Operating Temperature | 0~50℃ |
| Luminance | 250cd/㎡ |
| Viewing Angle | 85/85/85/85 Deg. |
| LED Lifetime | 15,000 hours minimum |
| Panel Size | 10.1" |
| Backlight Type | LED |
| Storage Temperature | -20~60℃ |
| Resolution | 1280x800 Pixels |
|
|
| 브랜드 이름: | BOE |
| 모델 번호: | GV101WXM-N81 |
| MOQ: | 50pcs |
| 가격: | To Be Negotiated |
| 포장에 대한 세부 사항: | Carton Box Or Wood Case |
| 지불 조건: | T/T |
| Attribute | Value |
|---|---|
| Operating Temperature | 0~50℃ |
| Resolution | 1280x800 Pixels |
| Display Color | 16.7M |
| Luminance | 250cd/㎡ |
| Surface Treatment | HC Glare |
| Active Area | 216.96x135.6mm |
| Panel Size | 10.1" |
| Storage Temperature | -20~60℃ |
The GV101WXM-N81 is a high-performance 10.1" LCD panel from BOE featuring 1280x800 resolution, eDP interface, and 250 nits brightness. This original A-grade panel offers wide viewing angles and HC glare surface treatment, with optional multi-touch functionality.
The active display area measures 216.96x135.6mm, delivering vibrant, detailed imagery with effective pixel utilization. With compact outline dimensions of 228.3x149.05mm, this panel provides an efficient display solution for various applications.
Featuring an eDP interface, the panel ensures seamless connectivity and smooth data transmission for high-quality image display without lag or distortion. The 250cd/㎡ luminance delivers bright, vivid colors with exceptional clarity for photos, videos, and graphics.
| Outline | 228.3x149.05mm |
| Color Gamut | 50% |
| Operating Temperature | 0~50℃ |
| Luminance | 250cd/㎡ |
| Viewing Angle | 85/85/85/85 Deg. |
| LED Lifetime | 15,000 hours minimum |
| Panel Size | 10.1" |
| Backlight Type | LED |
| Storage Temperature | -20~60℃ |
| Resolution | 1280x800 Pixels |
